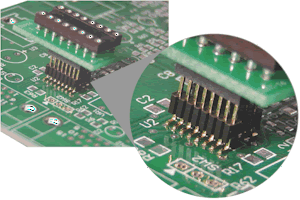

DIP to SOIC adapterIn this fast-pace and highly complicated electronic prototyping environment, ePBoard offers a series of superb . Our adapters instantly increase prototyping flexibility, provide direct probing and troubleshooting contacts through DIP socket and better yet, quickly ease the IC package mismatching on your design without rebuilding printed circuit boards.

ePBoard Design currently offers the following
standard parts:DIP to SOIC adapter


  DIP to SOIC (D2S) IC Adapters
     DIP-8 to SOIC-8
     DIP-14 to SOIC-14 (NARROW)
     DIP-14 to SOIC-14 (WIDE)
     DIP-16 to SOIC-16 (NARROW)
     DIP-16 to SOIC-16 (WIDE)
     DIP-18 to SOIC-18
     DIP-20 to SOIC-20
     DIP-24 to SOIC-24
     DIP-28 to SOIC-28

Want more from our DIP to SOIC adapters? Try to create your own special IC package to SOIC parts by combining ePBoard prototyping IC adapter and D2S adapter. Here are some examples:

TSSOP-20 to SOIC-20 IC Adapter:
  "E20-0015" + "E20-0130".

uMAX-8 to SOIC-8 IC Adapter:
  "E8-0045" + "E8-0130".

SOIC-16 (WIDE) to SOIC-16 (NARROW) IC Converter:
  "E16-0003" + "E16-0130".

The combinations are great and instant! Or, you can send an email to adapters@epboard.com for your special requirements.



DIP to SOIC Adapter:

E8-0130   DIP-8 to SOIC-8 IC Adapter

Converting DIP 8 pins package (with socket on the top) to SOIC 8 pins (150 mil / 200 mil wide) on the bottom and more...
  $10.15

E14-0130   DIP-14 to SOIC-14 IC Adapter

Converting DIP 14 pins package (with socket on the top) to SOIC NARROW 14 pins (150 mil / 200 mil wide) on the bottom and more...
  $13.25

E14-0135    DIP-14 to SOIC-14 IC Adapter

Converting DIP 14 pins package (with socket on the top) to SOIC WIDE 14 pins (300 mil wide) on the bottom and more...
  $13.25

E16-0130   DIP-16 to SOIC-16 IC Adapter

Converting DIP 16 pins package (with socket on the top) to SOIC NARROW 16 pins (150 mil / 200 mil wide) on the bottom and more...
  $15.50

E16-0135    DIP-16 to SOIC-16 IC Adapter

Converting DIP 16 pins package (with socket on the top) to SOIC WIDE 16 pins (300 mil wide) on the bottom and more...
  $15.50

E18-0130   DIP-18 to SOIC-18 IC Adapter

Converting DIP 18 pins package (with socket on the top) to SOIC 18 pins (300 mil wide)) on the bottom and more...
  $17.75

E20-0130    DIP-20 to SOIC-20 IC Adapter

Converting DIP 20 pins package (with socket on the top) to SOIC 20 pins (300 mil wide) on the bottom and more...
  $19.25

E24-0130   DIP-24 to SOIC-24 IC Adapter

Converting DIP 24 pins package (with socket on the top) to SOIC 24 pins (300 mil wide)) on the bottom and more...
  $22.50

E28-0130    DIP-28 to SOIC-28 IC Adapter

Converting DIP 28 pins package (with socket on the top) to SOIC 28 pins (300 mil wide) on the bottom and more...
  $26.75

For more advanced prototyping IC adapters...
